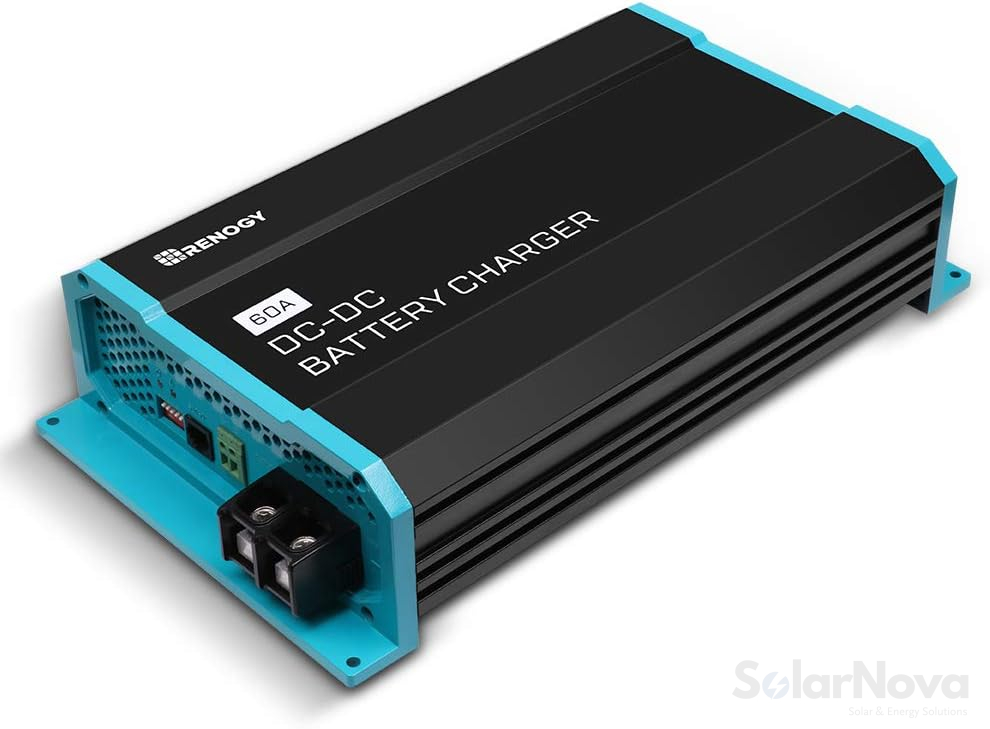

Renogy 60A DC-DC On-Board Battery Charger 12V

Renogy 60A DC-DC On-Board Battery Charger 12V (DCC12 Series)

The Renogy DCC12 Series DC-DC Battery Charger is the most effective way to charge your auxiliary or house batteries from your alternator or starter battery. Compatible with a wide range of alternator types, it delivers correct, optimised charging for AGM, Flooded, Gel, and even Lithium deep-cycle batteries. With a smart 3-stage charging algorithm and multiple electronic protections, you can be confident your batteries are charged optimally and automatically — every time you drive.

Compatible with Multiple Battery Types

Compatible with a multitude of alternator types, the charger provides correct charging profiles for AGM, Flooded, Gel, and Lithium batteries — a single unit for almost any 12V house-battery setup.

Smart 3-Stage Charging

The charger tops up your house batteries from the starter battery using a three-stage charging process — Bulk, Boost, and Float — ensuring your batteries are optimally and automatically charged to 100%.

Multiple Protections for Ultimate Safety

• Over-voltage protection
• Over-temperature protection
• Reverse polarity protection
• Input/output isolation to prevent incorrect voltage transmission and charging interference

Protects Your Starter Battery

Compatible with both traditional and smart alternators, the charger uses a D+ ignition signal to identify whether the engine is running — preventing over-discharge of the starter battery and protecting the alternator. (Note: the D+ ignition cable is not included; 18–16 AWG copper cable recommended.)

Protects Your House Battery

An optional LC (load-current) wire can automatically adjust the charging current to prevent excessive current from damaging the house battery. (Note: the LC cable is not included; 18–16 AWG copper cable recommended.)

Temperature Compensation for Longer Battery Life

Using the optional DC-DC temperature sensor, the charger applies -3mV/°C/2V compensation for more accurate voltage recognition and stable, constant charging in hot or cold conditions. (Note: the temperature sensor is not included and cannot be used with Lithium batteries.)

Compact, Robust & Easy to Install

The compact yet sturdy design suits tight installation spaces and demanding conditions — easily mounted in RVs, commercial vehicles, boats, yachts, and more.

Ideal Applications

• RVs, caravans, and motorhomes
• Commercial vehicles and trucks
• Boats and yachts
• Camper van and 4×4 dual-battery builds
• Auxiliary/house battery charging systems

Technical Overview

Important Setup Note

Set the DIP switches to match your battery type before use, and use pure copper cable with quality copper terminals sized for your current (4 AWG or larger for full-power runs) to avoid resistance, heat, and damage. Ensure your alternator can handle the additional load (the 60A unit can draw a high current from the alternator) — a lower-power mode is available to reduce the draw at low engine speeds.

Choose the Renogy 60A DC-DC On-Board Battery Charger 12V for powerful, reliable alternator charging that keeps your house battery topped up on every journey — a compact, rugged solution for RV, marine, and commercial dual-battery systems.
