Renogy Voyager 20A PWM Waterproof Solar Charge Controller 12V/24V
Original price was: R1147,70.R746,00Current price is: R746,00.
The Renogy Voyager 20A PWM Waterproof Solar Charge Controller is a class-leading IP67-rated controller built for outdoor and marine use, withstanding water spray, rain, and condensation.
Estimated delivery: 24. October – 26. October
estimated delivery time within South Africa
Multiple Payment Options Available
Overview

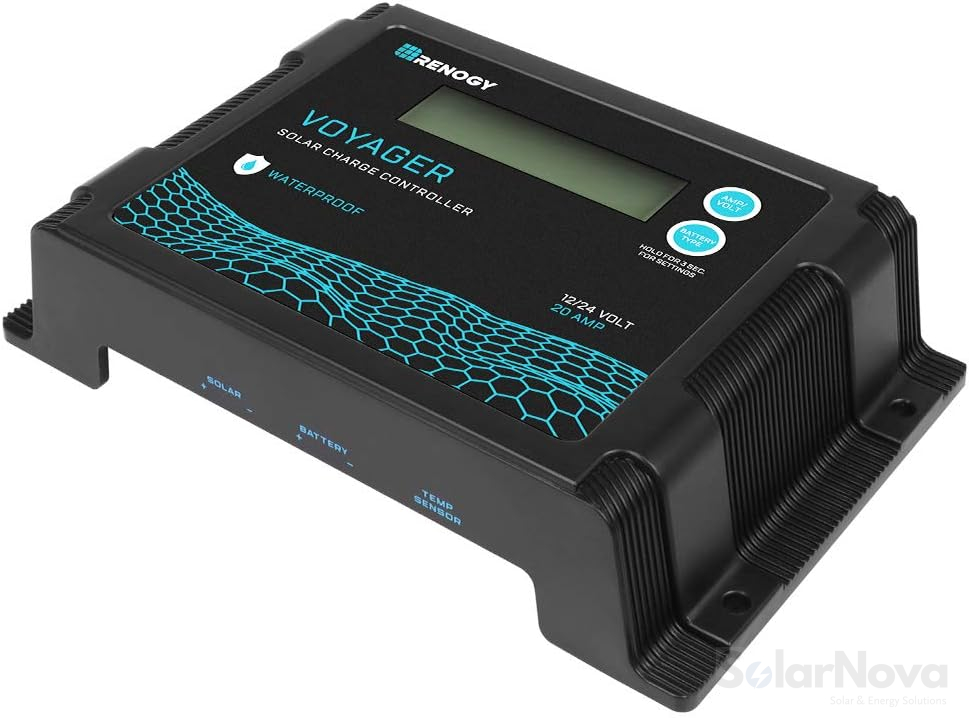

Renogy Voyager 20A PWM Waterproof Solar Charge Controller (12V/24V)
The Renogy Voyager 20A is a class-leading 20-amp PWM charge controller with an IP67 waterproof rating, engineered for world-class quality. Perfect for outdoor use, it withstands water spray, rain, and condensation. Equipped with advanced PWM technology and a bright blue backlit LCD displaying system information and error codes, it supports both 12V and 24V off-grid applications and is compatible with four different battery types, including Lithium Iron Phosphate. Multiple solar panel, battery, and controller protections ensure your system’s longevity and keep you worry-free.

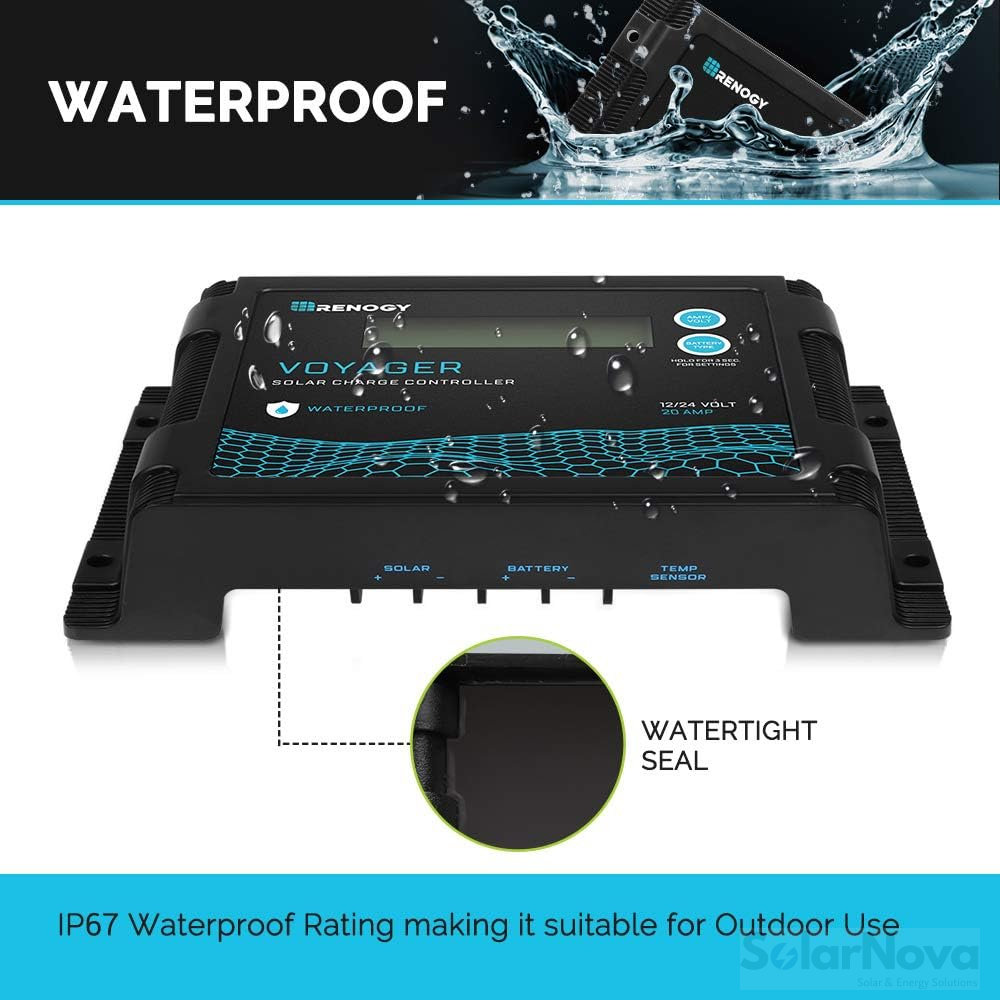

Built Waterproof — IP67 Rated
Unlike standard indoor controllers, the Voyager 20A carries a full IP67 rating, so it can be mounted where water spray, rain, and condensation are unavoidable — ideal for boats, trailers, and exposed outdoor installations.

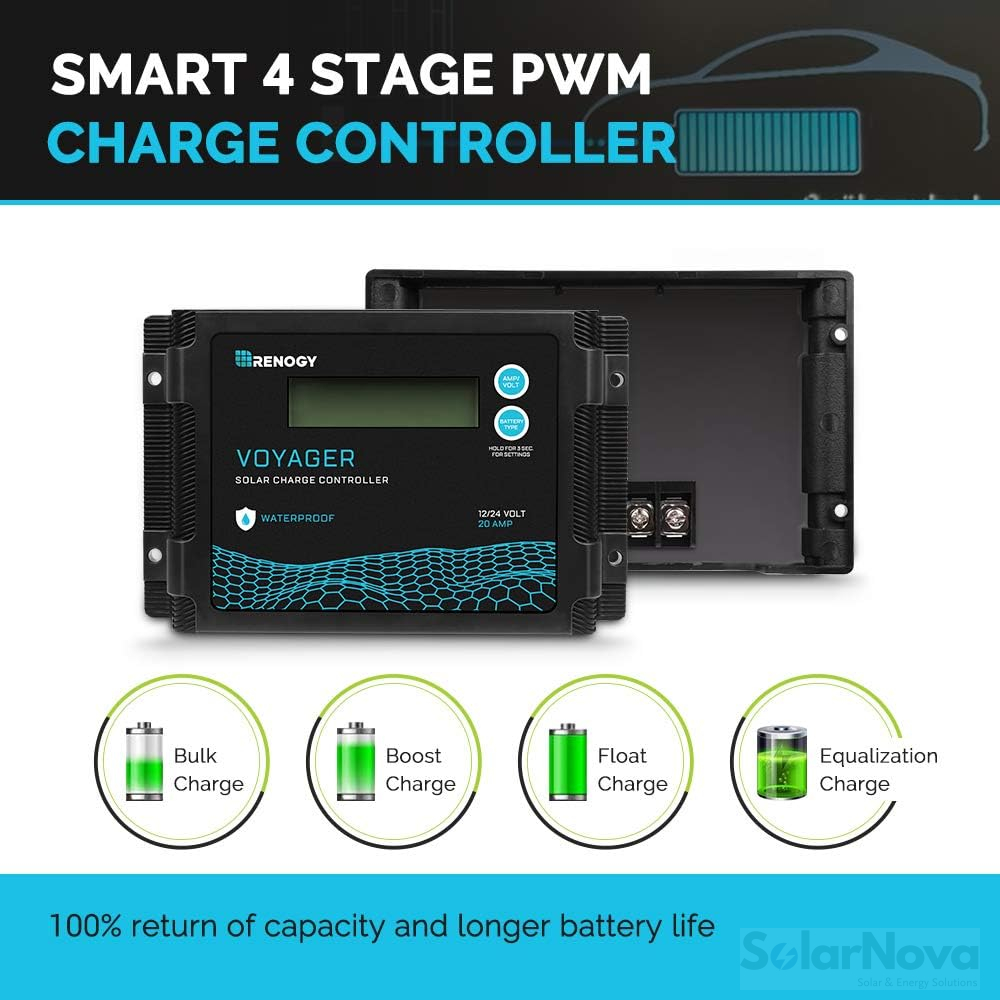

Smart 4-Stage PWM Charging
Bulk, Absorption, Float, and Equalization stages deliver safe, complete charging that extends battery life, with automatic 12V/24V voltage recognition for easy setup.
Wide Battery Compatibility & Lithium Awakening
Compatible with Sealed/AGM, Gel, Flooded, and Lithium batteries. A dedicated Lithium Awakening feature helps revive deeply discharged lithium batteries so your system stays reliable.
Comprehensive Protection
Built-in protections guard against reverse battery polarity, reverse PV polarity, PV over-voltage, battery over-voltage, PV over-current, battery over-current, and controller over-temperature — safeguarding every part of your solar system.

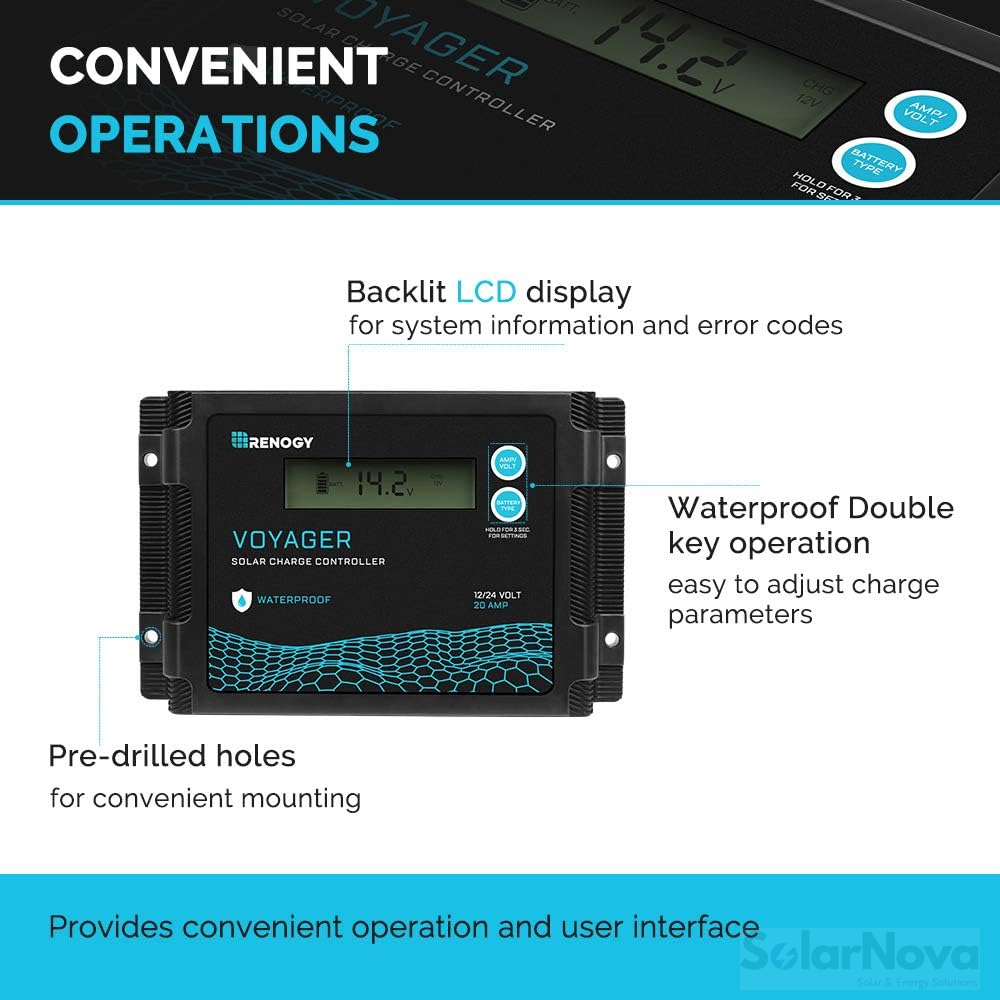

Clear Backlit Display
The bright backlit LCD shows real-time system information and error codes at a glance, making monitoring and troubleshooting simple in any light.
Technical Overview
| Model / SKU | Voyager 20A PWM Waterproof (RCC20VOYP) |
| Charging Technology | PWM (Pulse Width Modulation) |
| System Voltage | 12V/24V Auto |
| Battery Rated Current | 20A |
| Max Battery Voltage | 32V |
| Max Power Input | 12V @ 260W / 24V @ 520W |
| PV Input Voltage Range | 15V – 55V VOC |
| Max PV Input (Voc) | 12V @ 25 VOC / 24V @ 55 VOC |
| Power Consumption | 12V @ 0.24W / 24V @ 0.74W |
| Battery Types | Sealed/AGM, Gel, Flooded, Lithium |
| Temperature Compensation | -3mV/°C/2V (excludes Lithium) |
| Grounding Type | Positive |
| Controller Terminals | 20–6 AWG, 2-pin terminals |
| Protection Level | IP67 (waterproof) |
| Operating Temperature | -35°C to 45°C (-31°F to 113°F) |
| Storage Temperature | -35°C to 75°C (-31°F to 167°F) |
| Operating / Storage Humidity | 10% – 90%, no condensation |
| Dimensions | 6.08 x 3.83 x 1.40 in |
| Weight | 0.55 lb |
Important Setup Note
The Voyager 20A uses positive ground — different from Renogy’s Rover MPPT controllers, which are negative ground. Confirm your system’s grounding before wiring. As a PWM controller, panel voltage should be closely matched to battery voltage for best efficiency (12V panels for a 12V system, keeping Voc within the 15–55V range). The IP67 rating allows exposed outdoor and marine mounting.
Choose the Renogy Voyager 20A PWM Waterproof Solar Charge Controller for reliable, weatherproof 12V/24V solar charging with lithium compatibility and full electronic protection — the ideal rugged controller for marine, RV, and outdoor off-grid systems.
