Renogy 200W 12V Monocrystalline Foldable Solar Suitcase with 20A Voyager PWM Controller – Portable Off-Grid Solar Kit

Renogy 200W 12V Monocrystalline Foldable Solar Suitcase with 20A Voyager

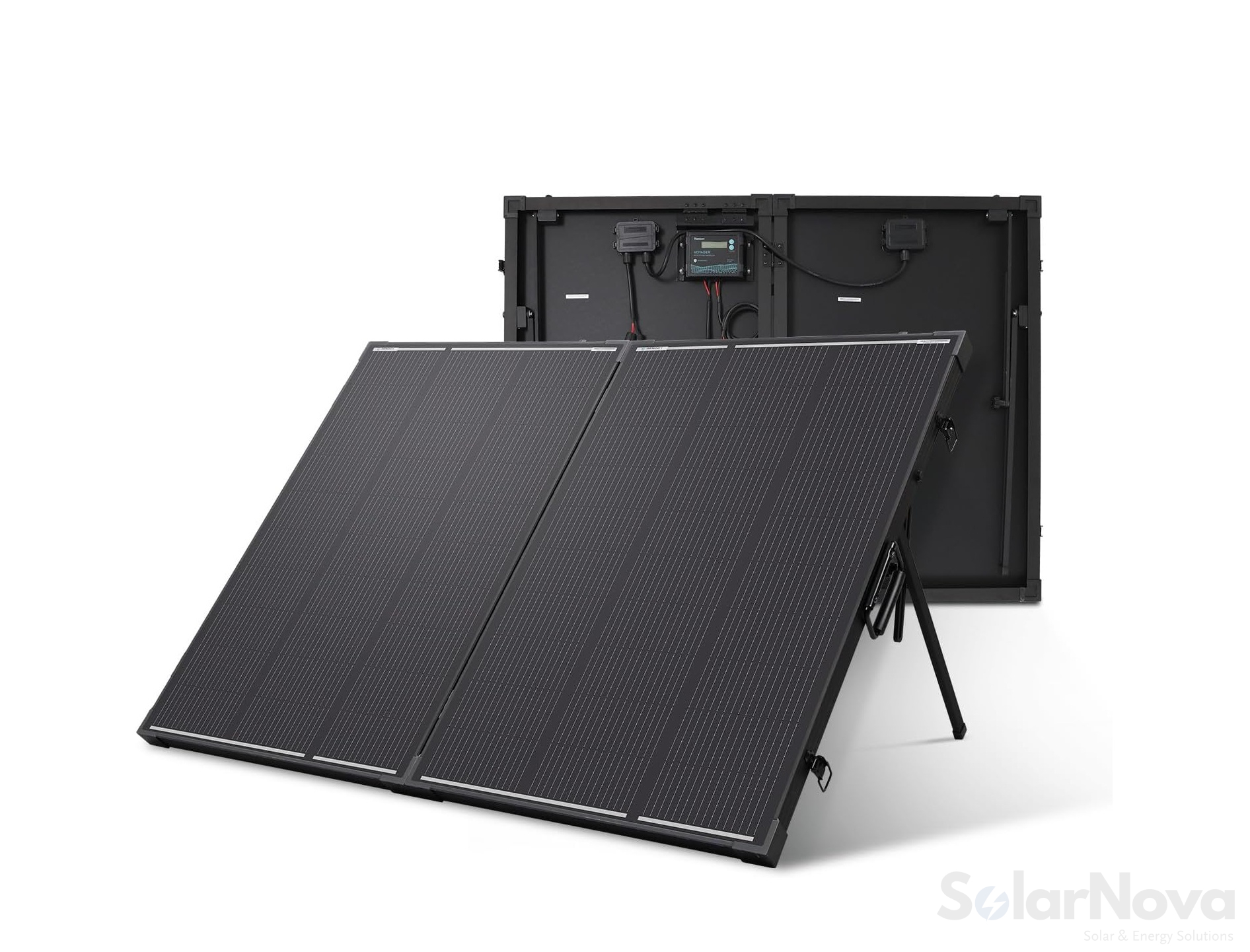

The Renogy 200W 12V Monocrystalline Foldable Solar Suitcase is the perfect companion for outdoor adventures or as reliable backup power for your home, cabin, or caravan — giving you both flexibility and dependable power with no need to rely on the grid. The kit folds neatly into a rugged protective carry case, unfolds in seconds, and connects to almost any battery via the included alligator clips.

Complete Plug-and-Play Kit

Everything you need to start generating power straight out of the box:

• Two high-efficiency 100W monocrystalline solar panels (foldable suitcase)
• Pre-installed waterproof 20A Voyager PWM charge controller
• Solar Connector to Alligator Clips Cable (10ft / 3m, 14 AWG) with 15A fuse
• Rugged protective carry case
• User manual

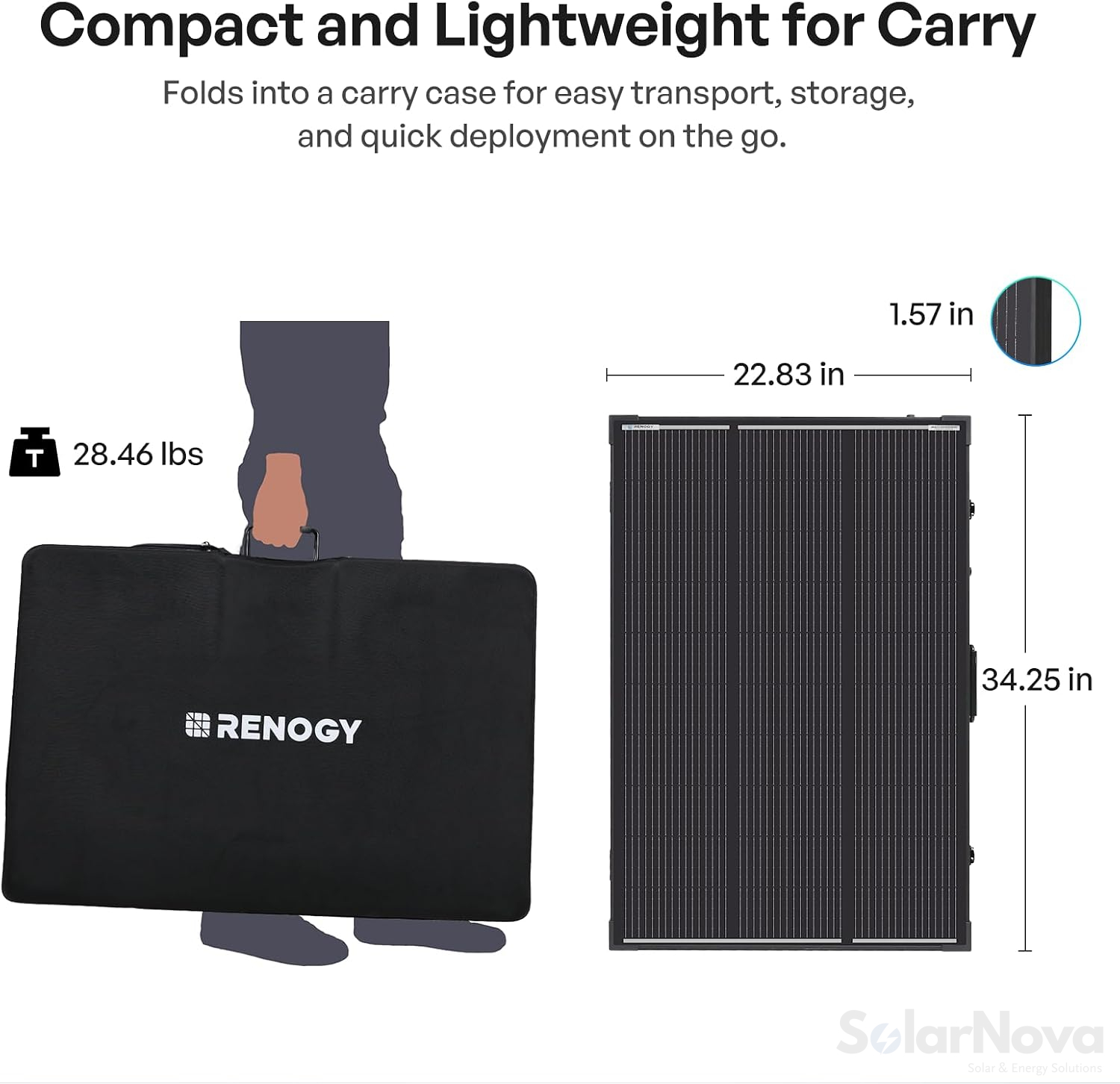

High Power Output, Portable Design

Two efficient monocrystalline panels deliver up to 1kWh of power per day under ideal conditions. Despite the output, the suitcase folds down for easy transport and storage — designed specifically for mobile off-grid use where space and weight matter.

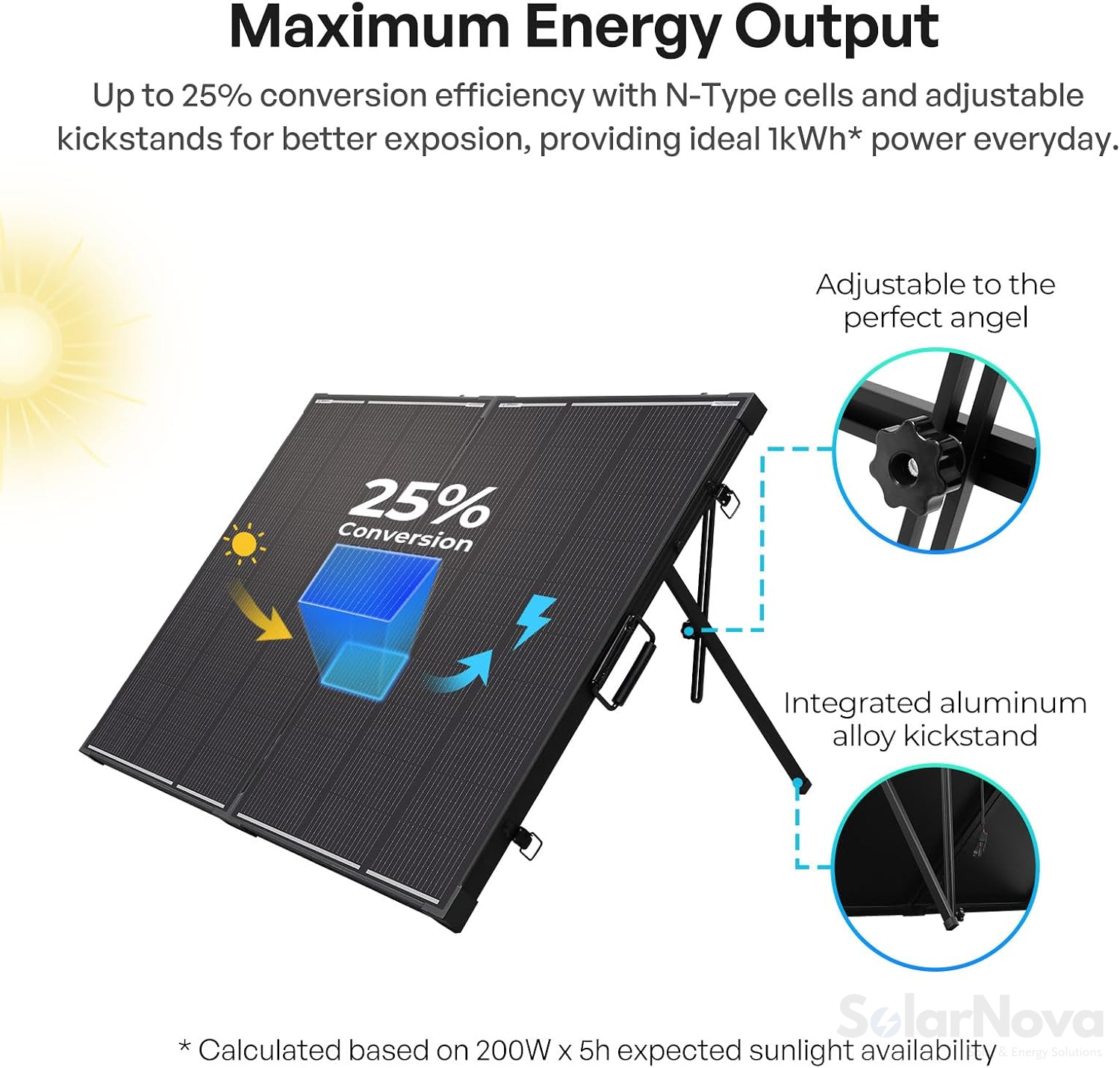

Adjustable Tilt Stands

Built-in corrosion-resistant aluminium tilt stands let you angle the panels to track the sun through the seasons for maximum power capture. Adjust to Latitude − 15° in summer, at latitude in spring and autumn, and Latitude + 15° in winter.

Waterproof 20A Voyager PWM Controller

The pre-installed Voyager charge controller features Pulse Width Modulation (PWM) technology and a backlit LCD that displays PV voltage, charging current, generated energy, battery voltage, and battery temperature — plus error codes for easy monitoring. Its IP67 waterproof rating makes it suitable for both indoor and outdoor use.

Four-Stage PWM Charging

• Bulk – constant current using 100% of available solar power
• Boost (Absorption) – constant voltage with gradually reducing current
• Float – constant low voltage to maintain a full charge (non-lithium)
• Equalization – for compatible flooded/vented lead-acid batteries only

A lithium battery activation feature can also reawaken a sleeping LiFePO4 battery whose protection circuit has been triggered by over-discharge.

Battery Compatibility

Supports four battery types — GEL, Flooded (FLD), Sealed Lead-Acid (SLD/AGM), and Lithium Iron Phosphate (LI) — selectable via the controller’s easy two-button interface. Always set the correct battery type before use.

Comprehensive Protections

• Battery & controller overtemperature protection
• Battery & solar reverse polarity protection
• Battery overvoltage protection
• Solar input overcurrent protection

Expandable System

The suitcase can be expanded with matching Renogy foldable panels to increase capacity or support 24V systems. (Use only the same panel model — mixing brands or models may damage the controller and void the warranty.)

Ideal Applications

• RVs, caravans, and motorhomes
• Camping and outdoor adventures
• Off-grid cabins and backup power
• Boats and marine setups
• 4×4 and overlanding builds

Technical Overview

Important Setup Note

Always connect the charge controller to the battery before connecting the solar panels, and set the correct battery type before use — an incorrect battery type setting can damage your battery and the controller, and voids the warranty. A solar connector fuse (15A for the 200W suitcase) is required to protect against overcurrent.

Choose the Renogy 200W 12V Monocrystalline Foldable Solar Suitcase for reliable, portable, plug-and-play solar power — the ideal off-grid companion for camping, caravanning, and backup power anywhere the sun shines.
