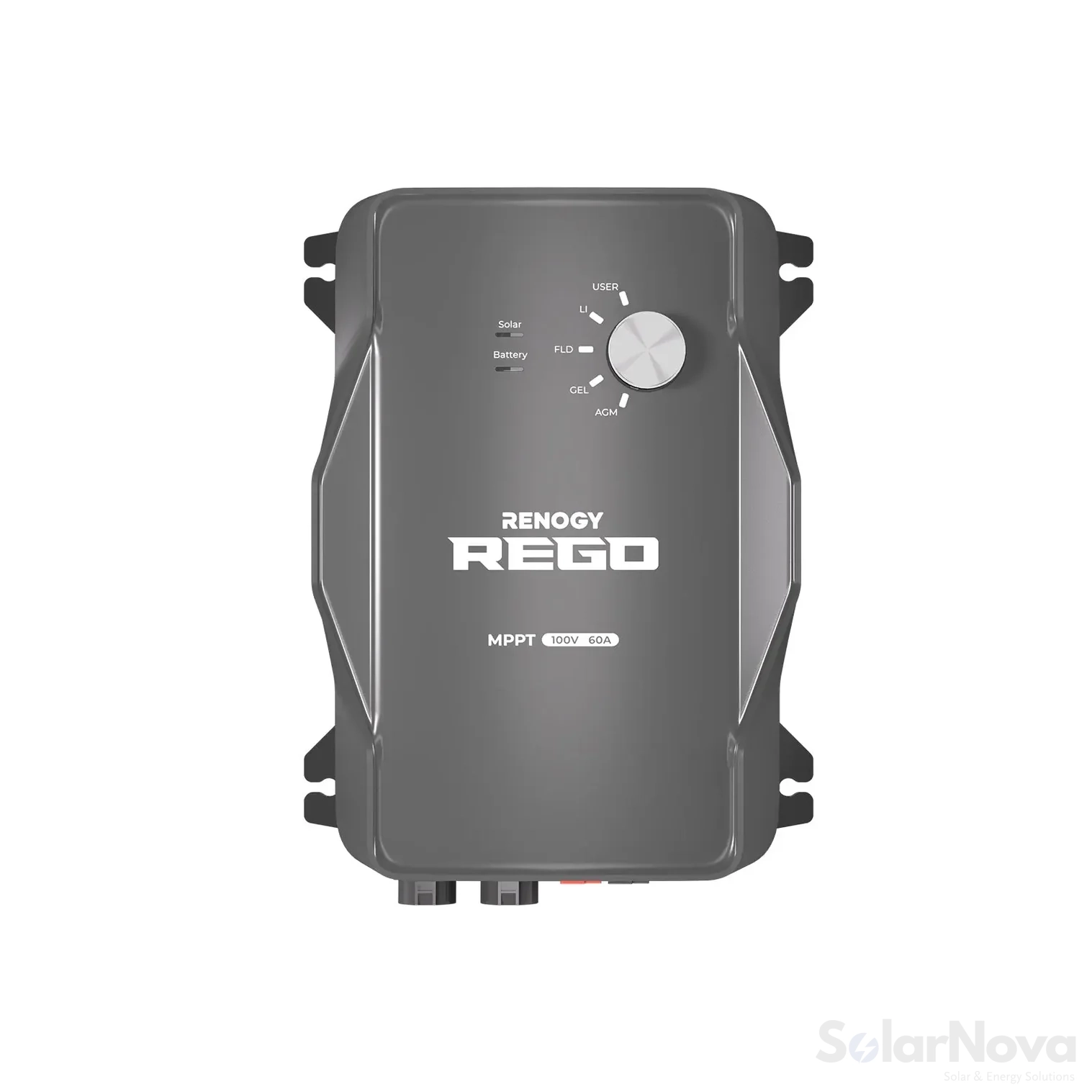

Renogy REGO 12V 60A MPPT Solar Charge Controller

Renogy REGO 12V 60A MPPT Solar Charge Controller

The Renogy REGO 12V 60A MPPT Solar Charge Controller is designed to install easily and protect your solar system completely. Its plug-and-play connections save considerable installation time over traditional controllers, while advanced BPU (Battery Protect Unit) technology guards your batteries against cell damage and failure. With 99% MPPT tracking efficiency it significantly improves solar power output — compact yet durable, combining high performance with pleasing aesthetics.

Save Up to 60% Installation Time

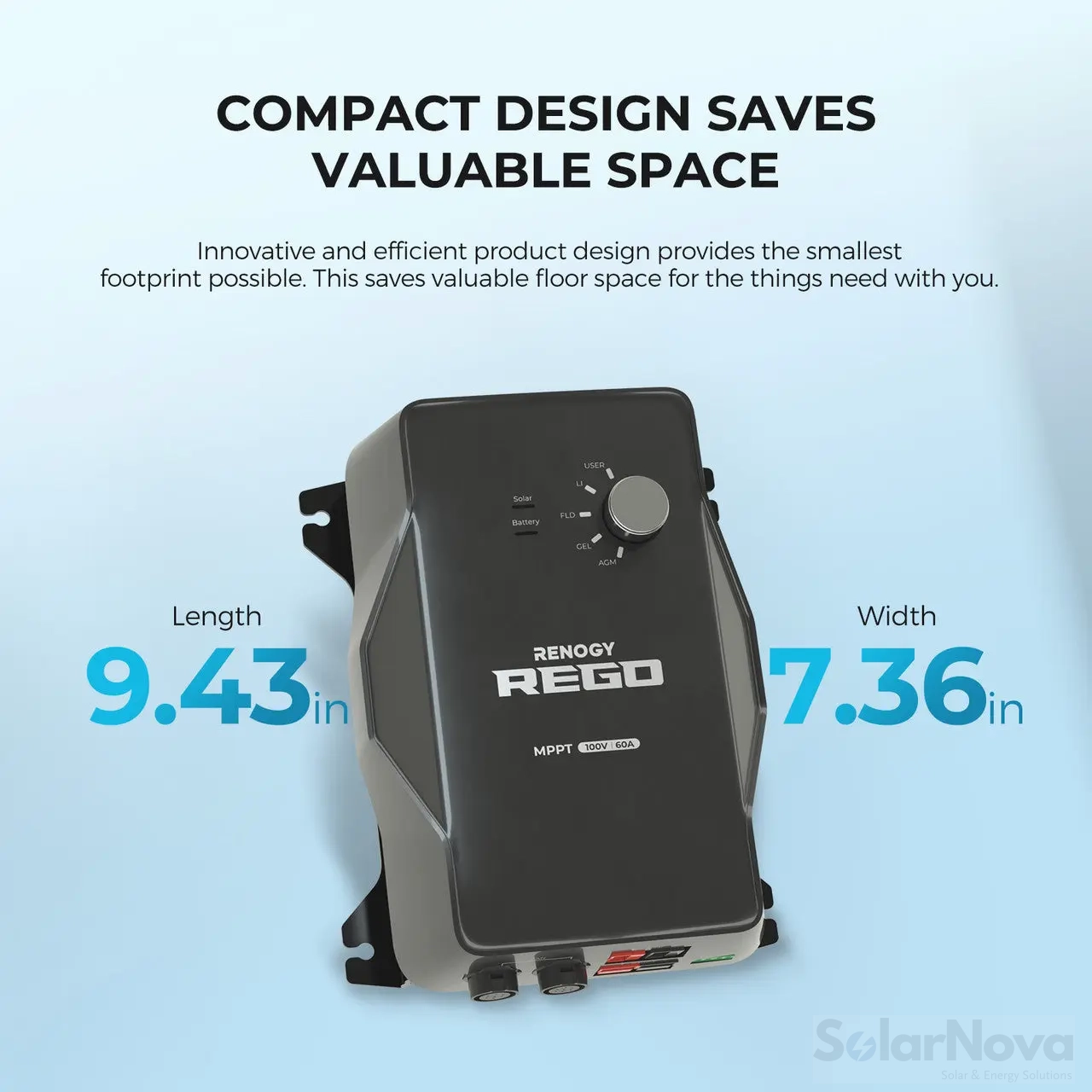

The REGO controller features a custom-designed Anderson-to-MC4 adapter cable for a quick, easy connection to your solar panels — reducing installation time by up to 60%. Its compact, durable design saves valuable installation space compared with other controllers. (Note: to connect to a non-REGO house battery, an Anderson-to-Ring-Terminal cable is required, sold separately.)

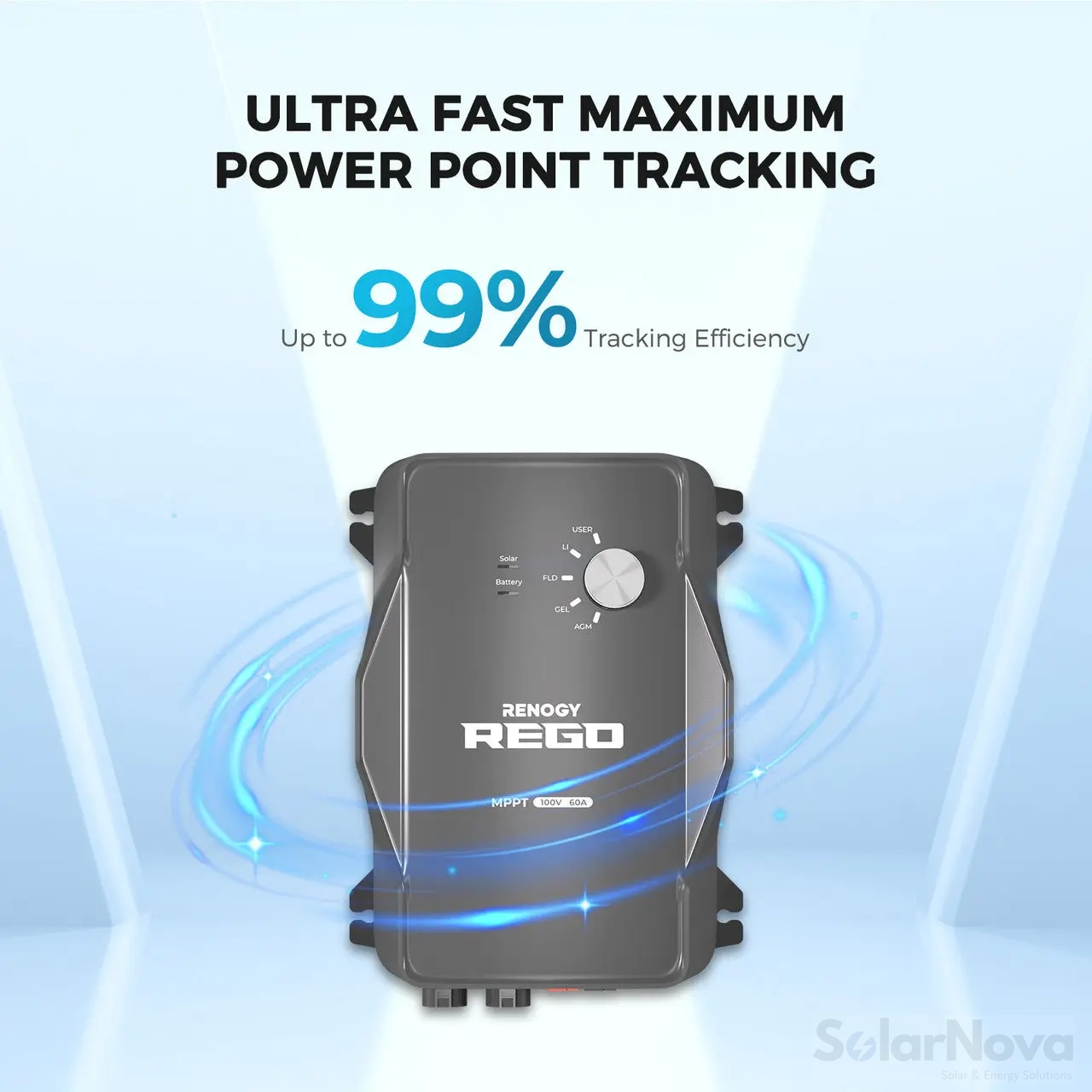

99% MPPT Tracking Efficiency

Advanced Maximum Power Point Tracking pushes tracking efficiency to 99%, extracting the maximum available power from your solar array throughout the day for more energy into your system.

Smart Battery Management & Whole-System Protection

A three-to-four-stage charging design (Bulk, Boost, Float, Equalization) for lead-acid batteries and a two-stage design for lithium ensures high charging efficiency while optimising battery health and lifespan. The integrated High Battery Protect Unit (BPU) disconnects non-essential loads before the battery is fully discharged or when it lacks enough power to start the engine — protecting the whole system.

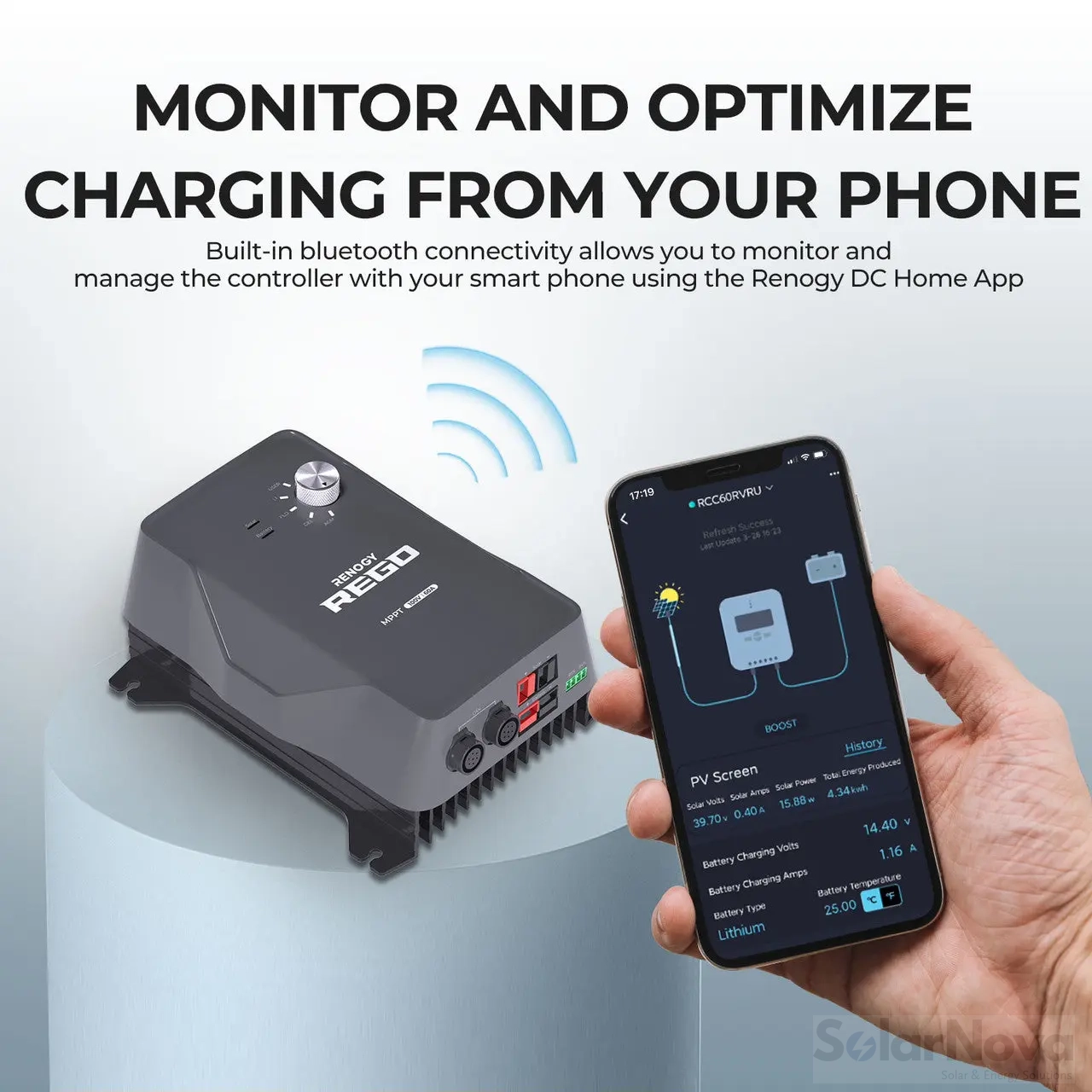

Built-In Bluetooth Monitoring & Control

Monitor and control the controller from your smartphone via the Renogy DC Home app. Customise battery parameters including boost voltage, float voltage, and duration — all wirelessly.

Integrated Thermal Management

A die-cast aluminium heat sink maximises the surface area exposed to ambient air, efficiently dissipating heat to keep the controller at optimal temperatures for stable, continuous charging.

Wide Temperature Range & Accurate Compensation

Operating from -20°C to 60°C (-4°F to 140°F), the controller uses a built-in temperature sensor for precise temperature compensation (-3mV/°C/2V for non-lithium; none for lithium), ensuring efficient, stable charging in all conditions.

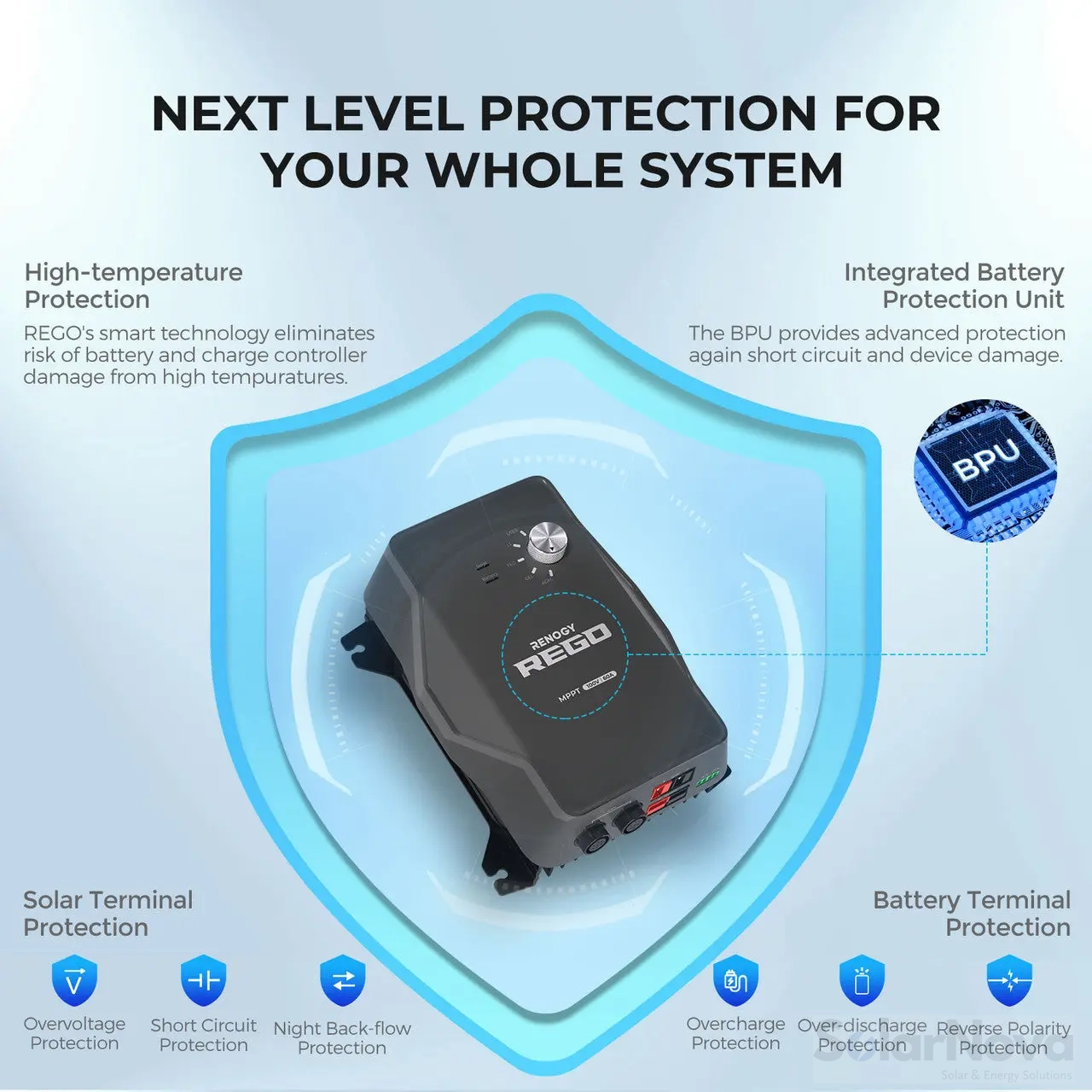

Comprehensive Electronic Protections

• Battery overcharge & over-discharge protection
• Battery reverse polarity protection
• PV reverse polarity & PV reverse flow protection
• PV short-circuit protection
• Controller over-temperature protection
• Charging over-current protection

Certified to the Highest Standards

Multi-certified to UL1741, CAN/CSA-C22.2 No. 107.1, CB/IEC 62109, EMC EN61000-3-1/-3, EN301489-1/17, RF EN300328, and FCC 47 CFR 15B — built to meet and exceed rigorous quality and performance standards.

Ideal Applications

• RVs, caravans, and motorhomes
• Boats and marine installations
• Camper vans and overlanding builds
• Off-grid cabins
• REGO-ecosystem solar systems

Technical Overview

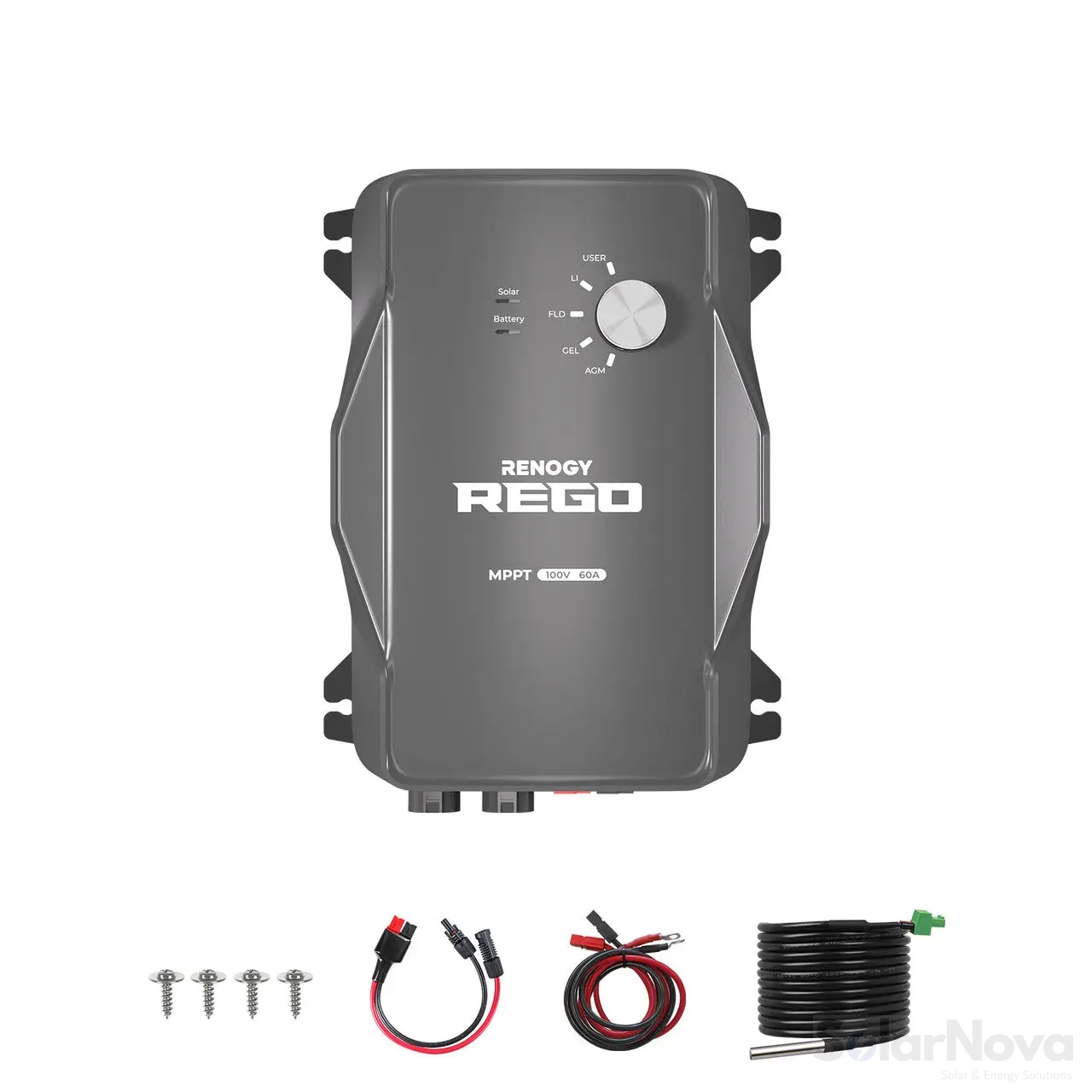

What’s in the Box

• 1 x REGO 12V 60A MPPT Charge Controller
• 1 x Renogy Temperature Sensor
• 1 x Solar Adapter Cable
• 4 x Mounting Screws
• 1 x BT-1 Bluetooth Module
• Optional: 5FT or 10FT 6AWG Anderson adapter cable (depending on option selected)

Important Setup Note

This is a solar charge controller — it charges your battery from solar panels only (it is not an alternator/DC-DC charger). To connect it to a non-REGO house battery, you’ll need an Anderson-to-Ring-Terminal cable (sold separately). Always set the correct battery type before use.

Choose the Renogy REGO 12V 60A MPPT Solar Charge Controller for fast-install, high-efficiency solar charging with built-in Bluetooth and comprehensive protection — the compact, reliable solar heart of any REGO-based RV, marine, or off-grid system.
