Renogy 300A ANL Fuse Set with Fuse & Cover

Name: Renogy 300A ANL Fuse Set with Fuse &amp; Cover
Brand: SolarNova
SKU: RPD300ANL-SET-G1-SA
Price: 73.25 ZAR
Availability: InStock

Original price was: R112,70.Current price is: R73,25.

The Renogy 300A ANL Fuse Set offers complete over-current protection for your solar power system — safeguarding your charge controller, battery, inverter, and connecting wires from damaging faults.

SKU: RPD300ANL-SET-G1-SA

FREE Delivery in South Africa*
14 Days Return/Exchange
Lowest Price Guarantee

Estimated delivery: 24. October – 26. October

Multiple Payment Options Available

Overview

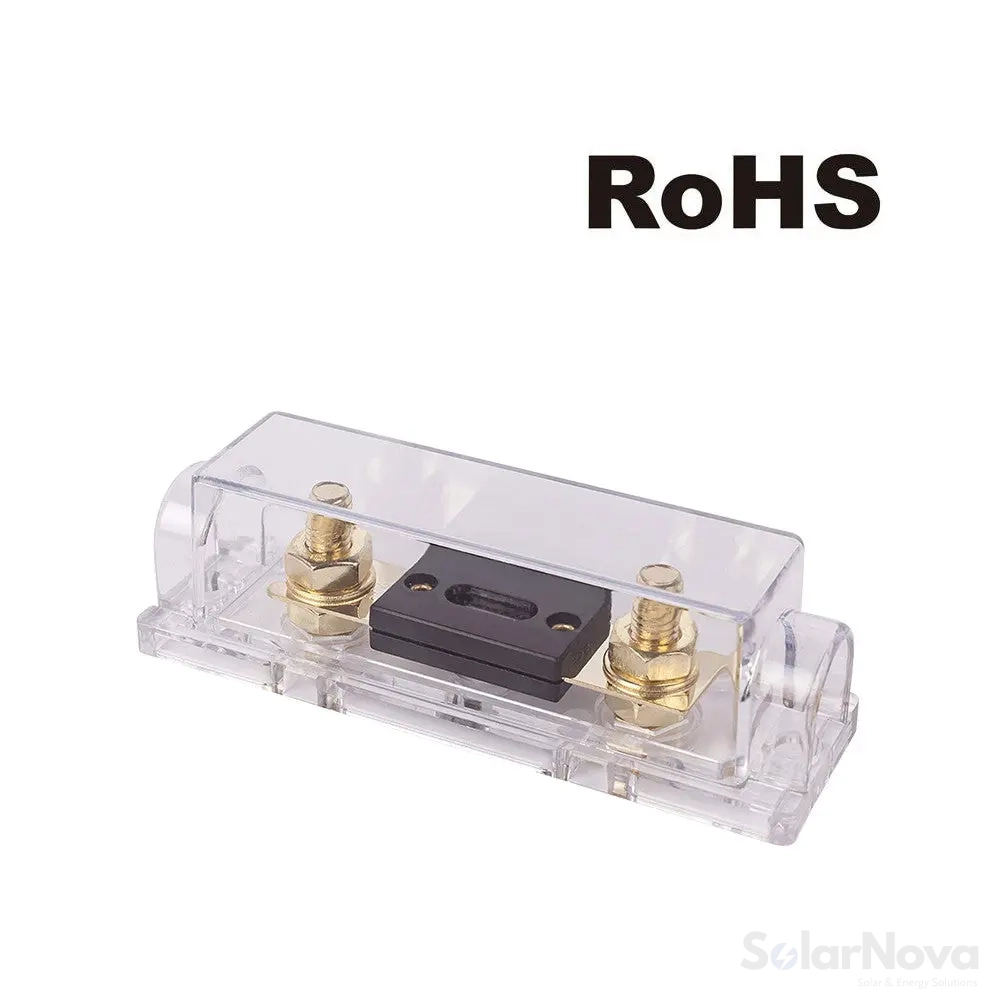

Renogy 300A ANL Fuse Set (with Fuse & Cover)

The Renogy 300A ANL Fuse Set offers complete protection to your system, guarding your charge controller, battery, inverter, and connecting wires from over-current — and ensuring you get the longevity out of your system that you expect. Supplied as a complete set with the 300A ANL fuse and a clear protective cover, it’s ready to install straight into your battery or inverter circuit.

Complete System Over-Current Protection

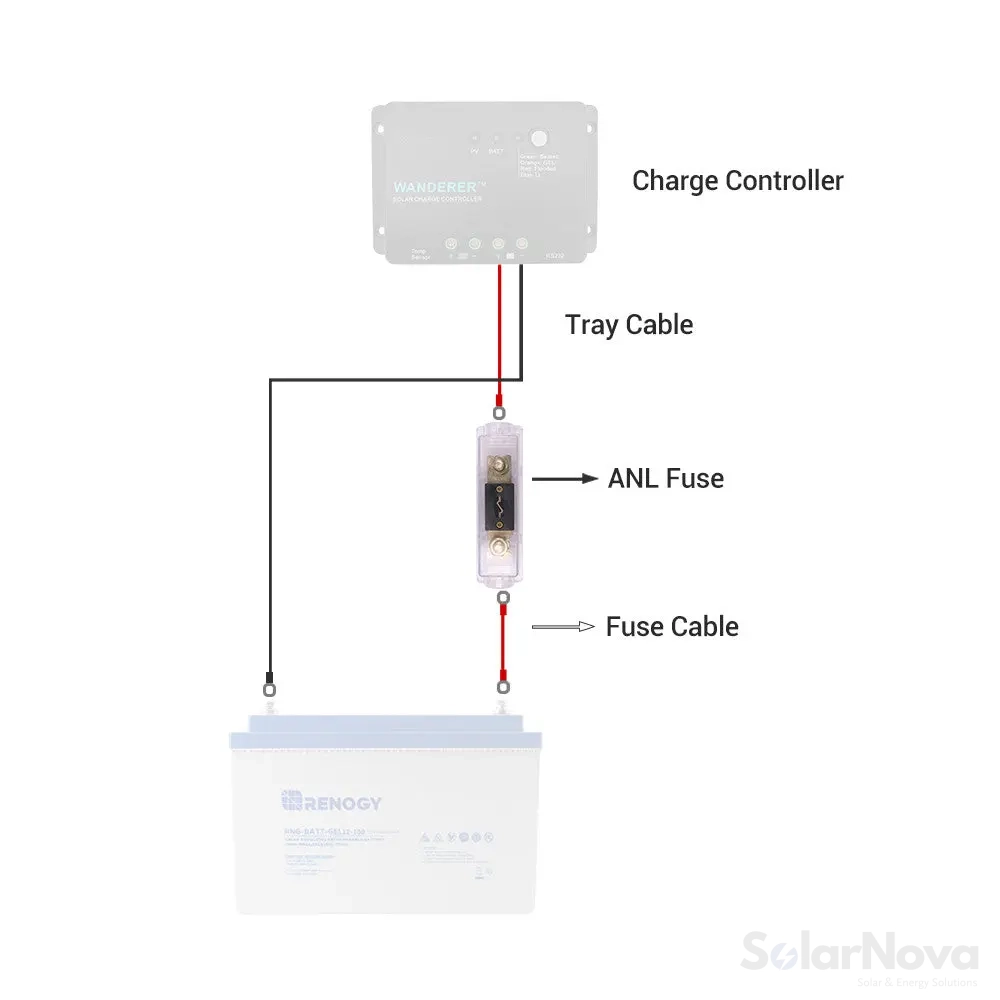

Fitted between your battery bank and inverter, charge controller, or main distribution, the ANL fuse breaks the circuit safely if current exceeds its rating — protecting your expensive components and wiring from damage and reducing fire risk.

Clear Cover for Easy Inspection

The transparent protective cover lets you inspect the fuse element at a glance while shielding the live terminals from accidental contact, dust, and debris — a clean, safe finish for any installation.

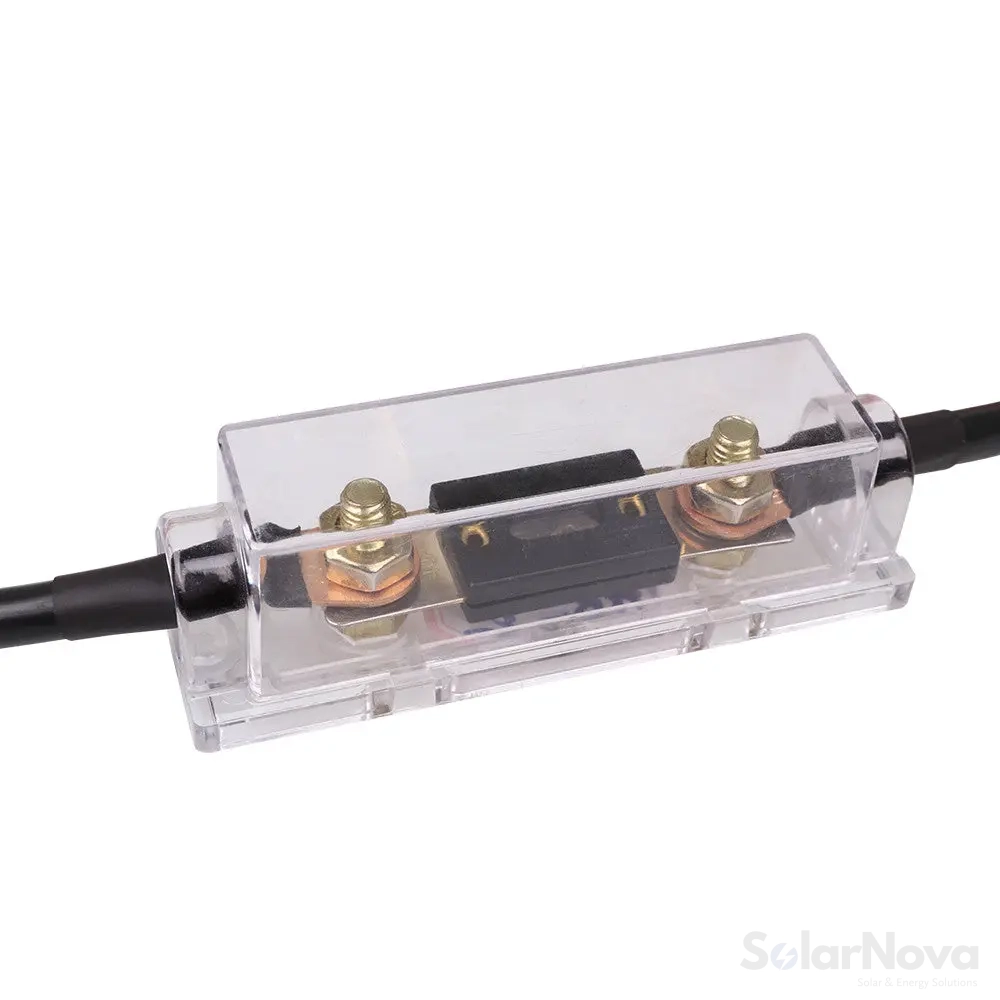

Secure, Easy Installation

Gold-plated brass studs accept M8 ring terminals (M8–M10 acceptable), and the fuse block bolts down firmly for a low-resistance connection. Simply stack the components in order and tighten the nuts to 8 N·m (70.8 in·lbs) for a secure fit.

Technical Overview

Model / SKU	Renogy 300A ANL Fuse Set w/ Fuse (RNG-SET-ANL300)
Fuse Rating	300A
Supplied As	Fuse holder + 300A ANL fuse + clear cover
Stud / Terminal Size	M8 studs (M8–M10 ring terminals acceptable)
Recommended Torque	8 N·m (70.8 in·lbs)
Set Dimensions (with cover)	124 x 37.6 x 37.5 mm (4.88 x 1.48 x 1.48 in)
ANL Fuse Dimensions	80 x 23 x 9 mm (3.15 x 0.91 x 0.35 in)
Housing	Transparent cover; gold-plated brass studs
Warranty	1-year material warranty

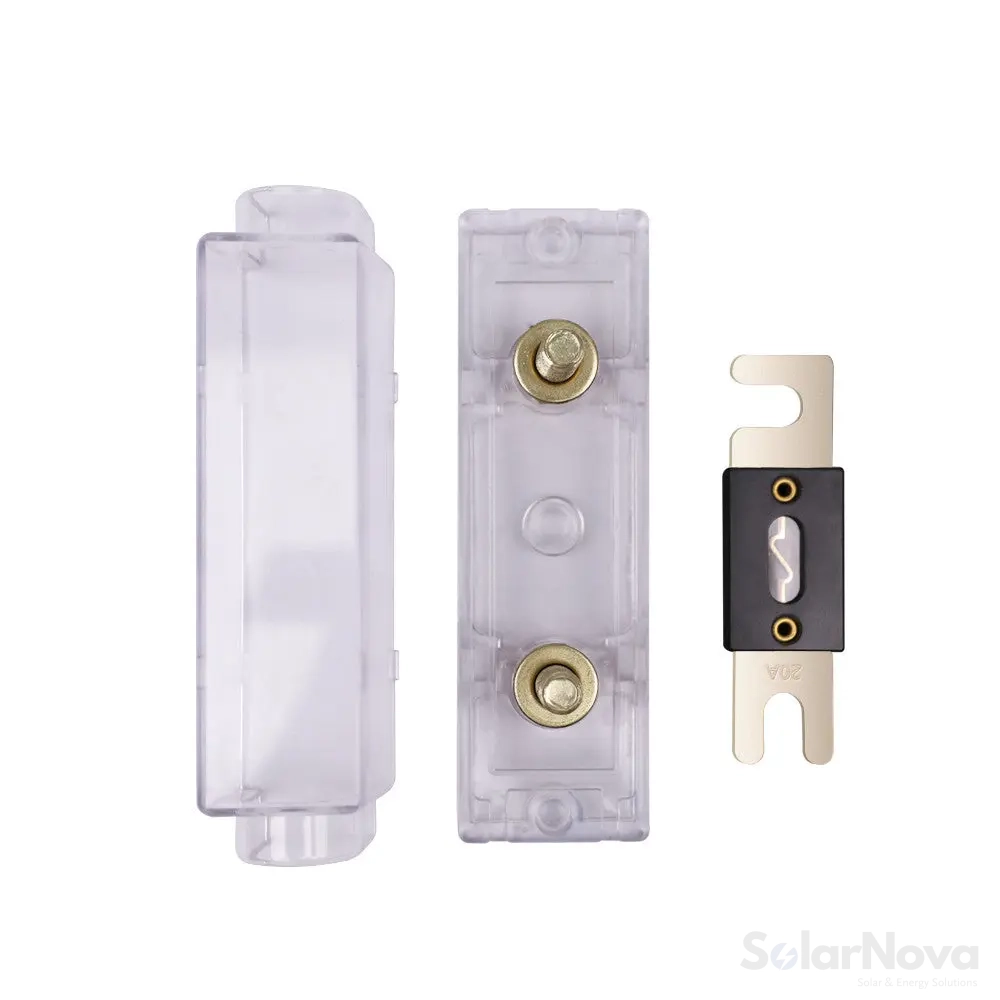

What’s in the Box

1 x ANL Fuse Holder (base)

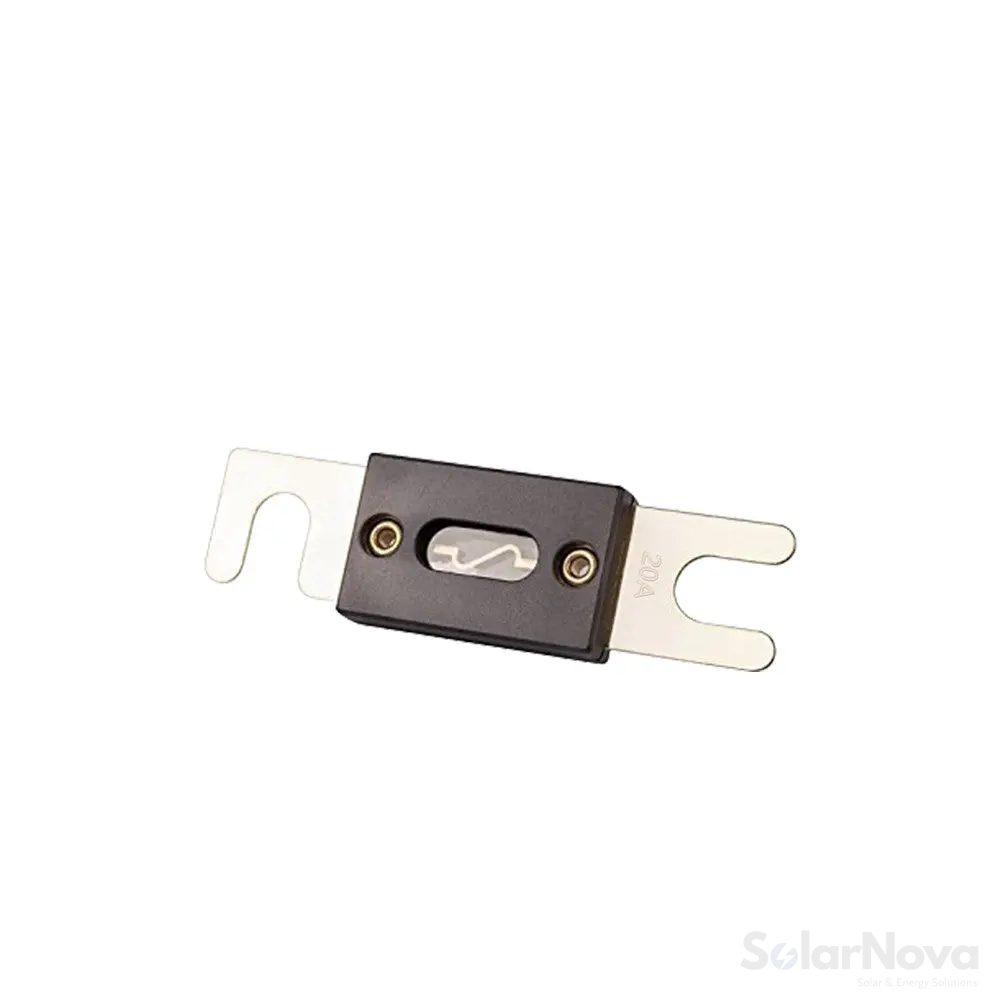

1 x 300A ANL Fuse
1 x Clear Protective Cover
Mounting nuts & washers

Installation Note

Install all components in the exact order shown in the manual, and tighten the nuts to 8 N·m (70.8 in·lbs) — do not overtighten. Ring terminals must be sized for M8 studs (M8–M10 acceptable). Match the fuse rating to your system: the fuse should protect the wire and be rated above your normal running current but below the cable’s safe capacity. Connect the fuse to your battery using a suitably sized fuse cable (sold separately).

Protect your battery bank, inverter, and charge controller with the Renogy 300A ANL Fuse Set — complete, ready-to-install over-current protection with a clear cover and gold-plated studs for reliable solar and off-grid systems.
